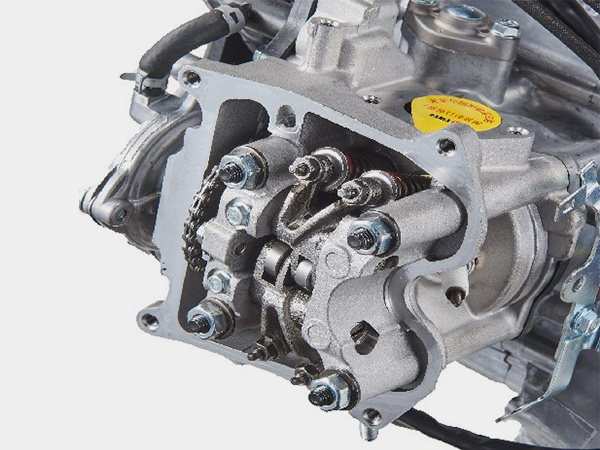

4-valve intake system boosts high-speed intake/exhaust efficiency, improves mixture formation, and reduces CO/HC emissions. With overhead camshaft, 4 valves significantly increase air intake and compression ratio for more power.
S40
Still deciding? Get a sample first, contact us!
Category:
Keywords:
- Product details
-
Indicator S40(16-inch Box) Engine Type Single - cylinder, four - stroke, water - cooled, overhead camshaft Bore/Stroke 63 mm/57.907 mm Cylinder Displacement 180.42 ml Compression Ratio 11:1 Maximum Power and Corresponding Speed 12 kW/7800 r/min Maximum Torque and Corresponding Speed 14.7 N·m/5700 r/min Minimum Specific Fuel Consumption 345 g/kW·h Minimum No - load Stable Speed 1800 r/min ± 100 r/min Ignition System/Starting System ECU - controlled ignition/Hall - driven Fuel Supply System Electronic Fuel Injection System Lubricating Oil Filter Model and Type Full - flow filter mesh Cooling System Water - cooled Specifications or Requirements Antirust and antifreeze fluid (Unified inorganic coolant - 45℃) Overall Dimensions (Length×Width×Height) 730 mm×455 mm×400 mm Net Weight 37 kg Our advantages

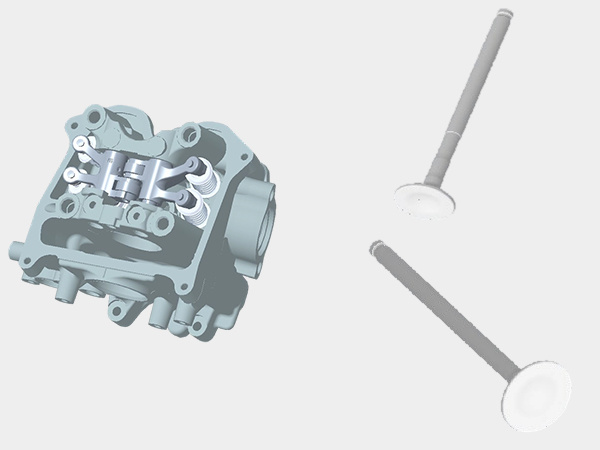

(1) High-standard integral cylinder head offers greater rigidity and precision, and effectively reduces abnormal noise.

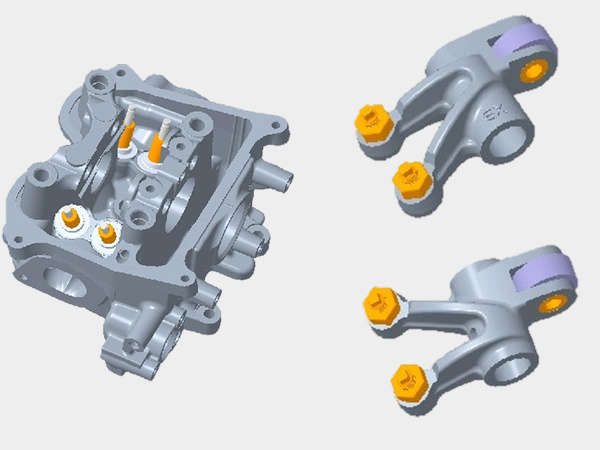

(2) Adopts needle-roller double rocker arm design.
Imported valves for better heat resistance. Swirl intake ports inside the cylinder head boost intake efficiency by over 10%.
S40 features a larger casing than traditional 150 water-cooled models, fitting a bigger transmission system. The fully upgraded casing, with more scientific design in appearance and structure, greatly enhances power quietness and stability.

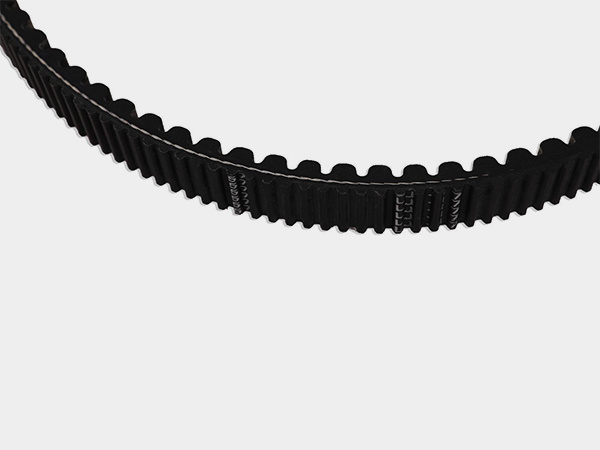

Double-sided toothed belt for more stable transmission and better heat dissipation.

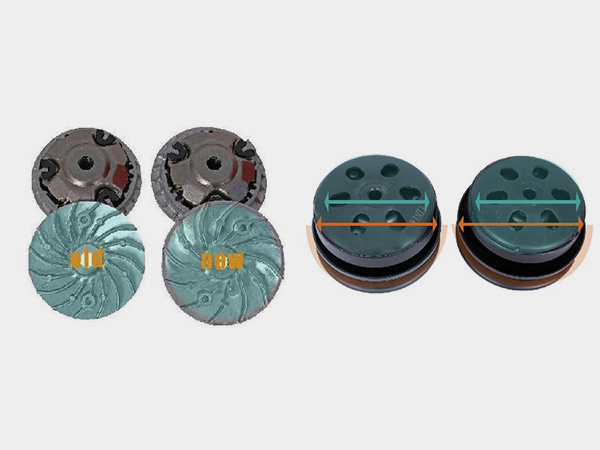

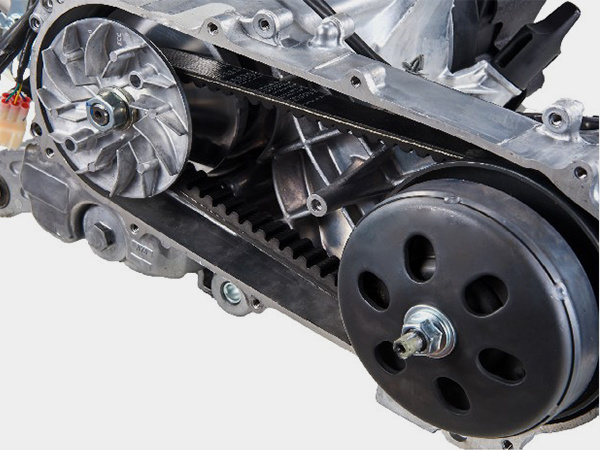

S40 has larger drive/driven pulleys than traditional 150 water-cooled models, with more scientific transmission ratio. Aids steady power in shifting, cuts high-rev noise, boosts power climb; large transmission enhances engine performance.

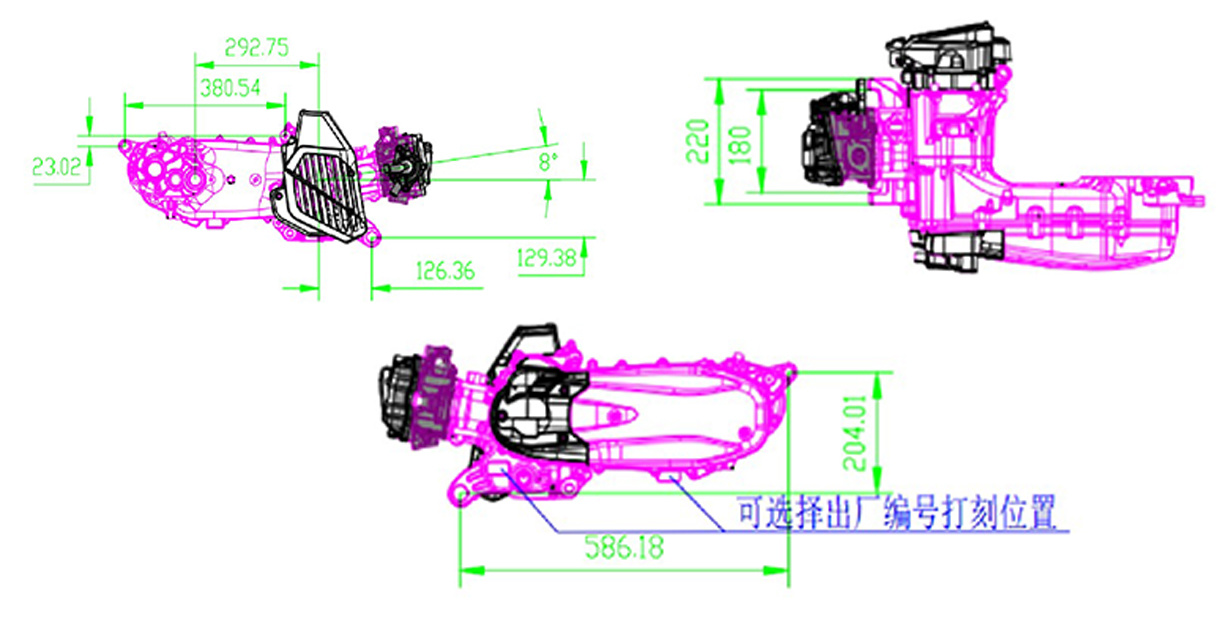

Installation dimensions
