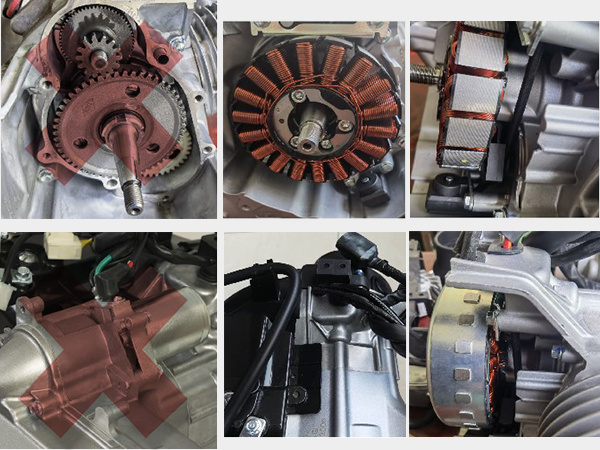

F39 uses ACG brushless starting instead of traditional motor clutch, with benefits of durability, zero wear, silent operation, and no need for replacing starting components.
F39
Still deciding? Get a sample first, contact us!
Category:
Keywords:
- Product details
-
Model Single - cylinder, forced - air - cooled, four - stroke, overhead camshaft Maximum power and corresponding speed 7 kW/7700 r/min Maximum torque and corresponding speed 10 N·m/6000 r/min Fuel consumption 259g/kW·h Minimum no - load stable speed 1700 r/min±100 r/min Cylinder diameter 52.4 mm Piston stroke 57.8 mm Cylinder working volume 124.53ml Compression ratio 9.8:1 Intake method OHC cam chain drive Ignition method ECU electronic control Lubrication method Combined pressure and pressure splash Clutch type Dry shoe, automatic centrifugal Transmission type and speed ratio Automatic continuously variable transmission, 2.64:1～0.82:1 Final drive ratio 8.615 Reduction ratio First stage 2.800; Second stage 3.076 Power output method Belt drive, continuously variable Starting method ACG brushless motor start Oil pump type Rotor type Total lubricant capacity Crankcase 0.75L, Gearbox 0.12L External dimensions (Length × Width × Height) 640mm×410mm×310mm (10 inches) Net mass 30kg Our advantages
F39 features the latest hybrid assist: the magneto aids initial startup, creating an oil-electric hybrid mode that boosts startup efficiency, increases torque and cuts fuel use.
Brand - new structure cylinder head
Honda - matched thermal engine components
Frequency conversion shot peening, with unique matte texture, enhances power explosiveness.
The weight of the whole machine even reaches 30KG.
